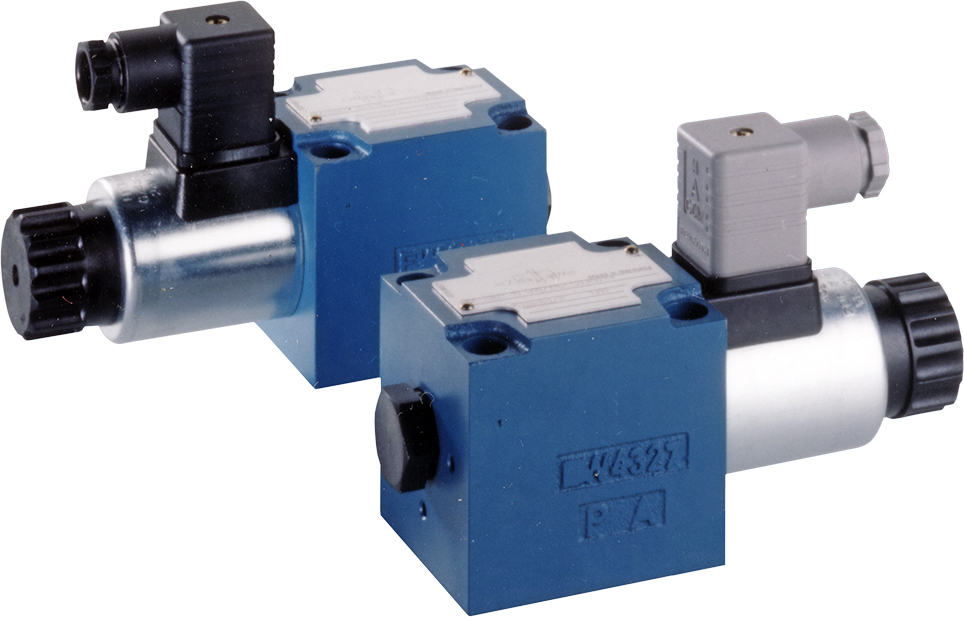

3/2 and 4/2 directional poppet valve with solenoid actuation M-SED 10
Consultation request
Type code
M
-
SED
10
1X
/
350
C
K4
Result count
189 from 189
Fluid suitability
Mineral oil
M
Mineral oil
Main ports
3
3 main ports
4
4 main ports
Type
Poppet valve
SED
Poppet valve
Size
Size 10
10
Size 10
Symbol
CK
3/2 directional seat valve
D
4/2 directional seat valve
UK
3/2 directional seat valve
Y
4/2 directional seat valve
Series
Series 10 … 19
1X
Series 10 … 19
Operating pressure
Operating pressure up to 350 bar [5076 psi]
350
Operating pressure up to 350 bar [5076 psi]
Solenoid version
Solenoid, wet-pin, with detachable coil
C
Solenoid, wet-pin, with detachable coil
For further ordering codes for other voltages see technical data
G110
Nominal voltage 110 V at DC solenoid with operation with AC voltage mains
G205
Nominal voltage 205 V at DC solenoid with operation with AC voltage mains
G24
Direct voltage 24 V
G96
Nominal voltage 96 V at DC solenoid with operation with AC voltage mains
Manual override
Without manual override
N9
With concealed manual override
Mating connectors, separate order
Without mating connector, individual connection with connector according to DIN EN 175301-803
K4
Without mating connector, individual connection with connector according to DIN EN 175301-803
Spool position monitoring
Without position switch
QMAG24
Monitored spool position “a”
QMBG24
Monitored spool position “b”
Check valve insert / throttle insert
Without check valve insert, without throttle insert
B12
Throttle Ø 1.2 mm [0.0472 inch]
B15
Throttle Ø 1.5 mm [0.0591 inch]
B18
Throttle Ø 1.8 mm [0.0709 inch]
B20
Throttle Ø 2.0 mm [0.0787 inch]
B22
Throttle Ø 2.2 mm [0.0866 inch]
P
With check valve insert
Seal material
NBR seals
V
FKM seals
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:M-SED101X/350CK4
| The following data were selected. | ||
|---|---|---|
| Fluid suitability | M | Mineral oil |
| Type | SED | Poppet valve |
| Size | 10 | Size 10 |
| Series | 1X | Series 10 … 19 |
| Operating pressure | 350 | Operating pressure up to 350 bar [5076 psi] |
| Solenoid version | C | Solenoid, wet-pin, with detachable coil |
| Mating connectors, separate order | K4 | Without mating connector, individual connection with connector according to DIN EN 175301-803 |
